KLINGER® top-sil ML1

Special multi-layer gasket material with extended service life

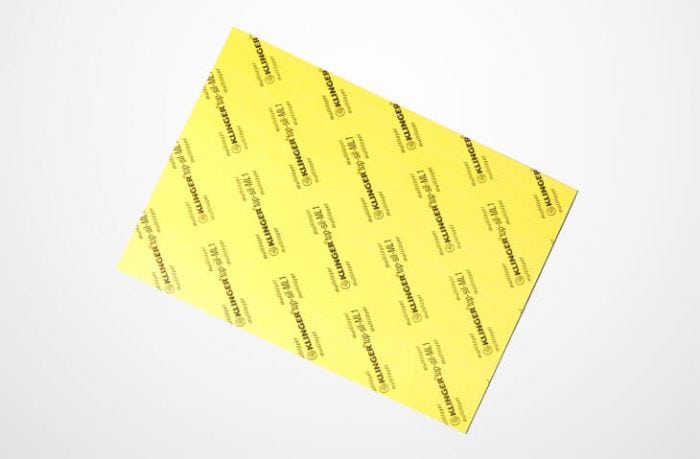

KLINGER®top-sil ML1 is a special multi-layer gasket material with extended service life and improved flexibility at higher temperatures.

Basis

Revolutionary combination of synthetic fibres and different elastomers, bonded in a multi-layer structure.

Areas of application

This material is suitable for use with oils, water, steam, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants.

KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • Unique multi-layer structure
  • Utilization of HNBR and NBR rubber
  • Resistant to creep and cold flow
  • Dimensionally stable

Benefits

  • Extended service life time
  • Improved flexibility at higher temperatures

Typical technical data for thickness 2.0 mm

Compressibility ASTM F 36 J



%

9

Recovery ASTM F 36 J

  % 50

Stress relaxation DIN 52913

50 MPa,16 h / 175 °C
50 MPa,16 h / 300 °C
MPa
MPa
34
28

Stress relaxation BS 7531

40 MPa, 16 h / 300 °C MPa

29

KLINGER cold/hot compression
50 MPa

thickness decrease at 23 °C
thickness decrease at 300 °C

%
%
8
15

Tightness

DIN 28090-2 mg/s x m

0.05

Specific leakrate λ

VDI 2440 mbar x l/s x m

3.51E-06

Thickness increase after fluid
immersion ASTM F 146

Oil IRM 903: 5 h / 150 °C
Fuel B: 5 h / 23 °C

%
%
4
8

Density



g/cm3

1.7

Average surface resistance

ρO Ω

9.3x10E12

Average specific volume resistance

ρD Ω cm

3.8x10E12

Average dielectric strength

Ed

kV/mm

18.8

Average power factor

50 Hz tanδ

0.048

Average dielectric coefficient

50 Hz εr

7.3

Thermal conductivity

λ W/mK

0.36

Classification acc. to BS 7531:2006

Grade AX

ASME-Code sealing factors

for gasket thickness 1.0 mm

tightness class 0.1 mg / s x m

MPa

y 15
m 1.5

for gasket thickness 2.0 mm

tightness class 0.1 mg / s x m

MPa

y 15
m 2.2

for gasket thickness 3.0 mm

tightness class 0.1 mg / s x m

MPa

y 15
m 4.0

Dimensions of the standard sheets

Sizes 2000 x 1500 mm
Thicknesses 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness acc. to DIN 28091-1
Length ±50 mm, Width ±50 mm

Other thicknesses, sizes and tolerances on request.

Function und durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our Installation manual.
