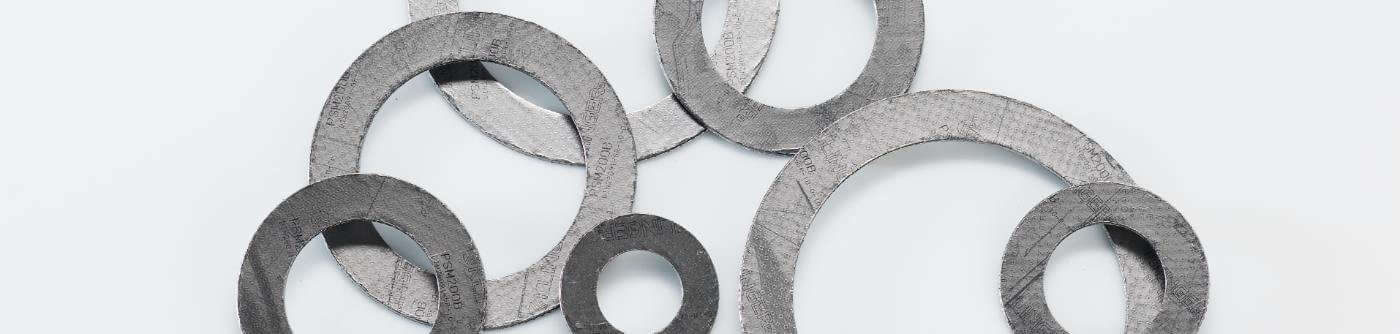

KLINGERSIL Hochdruckdichtung

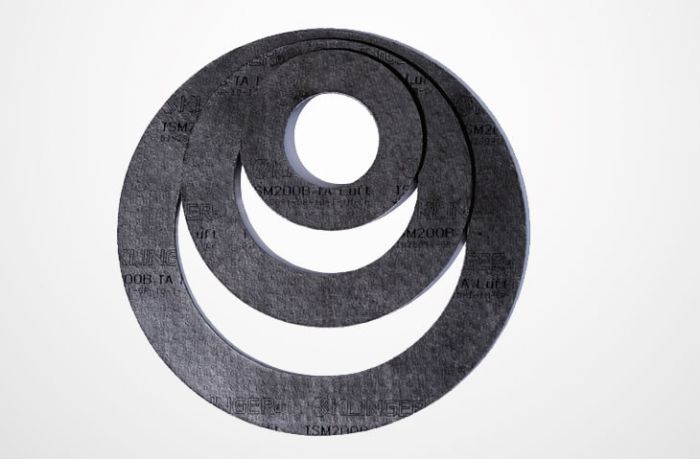

KLINGER® Graphite Laminate TSM

TA-Luft gasekt with reduced leakage rate for high temperatures up to 450°C

KLINGER® Graphite Laminate TSM fulfills the TA-Luft requirements and offers safety at high temperatures up to 450°C.

Basis

Glueless gasket material consisting of impregnated expanded graphite and a 0.1mm thick tanged stainless steel insert. Stable physical properties over the whole temperature range.

Areas of application

KLINGER® Graphite Laminate TSM is especially suitable for the use in the chemical industry, in refineries and power plants.
KLINGERSIL® C-4300 ist eine universelle Hochdruckdichtung.

Key features

  • Mechanically bonded tanged stainless steel insert
  • Excellent high temperature resistance
  • Excellent chemical resistance

Benefits

  • Superior tightness (TA-Luft approval)
  • Stable physical properties over the whole temperature range

Typical technical data for thicknesses 1.5, 2.0 and 3.0 mm

      TSM 150B

TSM 200B

TSM 300B-2

Thickness

  mm

1.5

2.0

3.0

Density of graphite



g/cm3

1.0

1.0

1.0

Ash Content graphite DIN 51903

  %

≤ 2.0

≤ 2.0

≤ 2.0

Insert
Tanged stainless steel sheet

Material
Thickness
Number of inserts


mm

1.4401
0.1
1

(oder 1.4404)
0.1
1


0.1
2

Compressibility ASTM F36 A

  % 30 - 45 30 - 45 30 - 45

Recovery ASTM F36 A

  % 15 -25 15 -25 15 -25

Stress relaxation DIN 52913

σD 16h, 300°C, 50 N/mm2

N/mm2

≥ 45 ≥ 45 ≥ 45

Dimensions of the standard sheets

Sizes 1000 x 1000 mm
Thicknesses 1.5 mm, 2.0 mm, 3.0 mm
Tolerances Thickness ±5 %
Length ±4 mm, Width ±4 mm

Other thicknesses, sizes and inserts on request.

Function and durability

The performance and service life of KLINGER gaskets depend to a large extent on proper storage and fitting - factors beyond the manufactor’s control. We can, however, vouch for the excellent quality of our products. With this in mind, please also take note of our installation manual.
